Dual Energy X-ray Scanner AT6550 Baggage and parcel Inspection System
General Specification :
|Conveyor Max Load
|X ray Dose per inspection
||40 AWG typical
||30AWG ,the wire visible below 15.9mm thick aluminum
||Guarantee ASA/ISO1600 Film
|Spatial resolution Level
||dia1.0mm, Vertical: dia1.0m
| Penetrate resolution
||24WG to 34AWG
||30mm to 32mm Steel
||Guarantee ISO1600 Film
||<0.15μGy/h (at a distance of 5cm From external housing)
Image System :
Technical Principle--------Dual-energy X-ray Imaging; L Shaped Array,
X-ray Sensor--------L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor--------High Resolution Color, LCD Accord, 17inch
Image Display--------High resolution of 1024 * 1280 pixel; Image Grey Level: 65536
Image Enhancement--------1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall--------All preceding images recallable, retrieval.
Explosives & Narcotics Detection: Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm--------Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection--------Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive--------Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions--------Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications--------Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc .
Images process--------24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536
Operation temperature/Humidity------- -5℃-40℃/10%-95%(non-condensing)
Storage Temperature/Humidity-------- -20℃to 60℃/ 5%-95%(non-condensing)
Operation Power--------220VAC(±10%)50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption--------1.0KW (max), 0.7KW(working)
Dimensions (L×W×H)--------2195mm x902mm x1362mm
Main board: AIMB 501G2
CPU: G1610 2.6G
Storage: 2GB 1600MHz DDR3 Innodisk
Hard Disk: SEAGATE 500G 3.5”
Anode Voltage: 140kv
Anode power: 0.35mA
Generate angle: 80 degree upward
Brand: SECUSCAN ( own made )
Generate direct: from top to bottom
Cooling / Duty Cycle: Oil Cooling /100%
Detect PCB board: UK brand Sensortech
Extension Rollers: customize size length
Support card reader operator access
CD DVR/RW unit: Optional
Computer system: XP system
Monitor: 17 inch DELL monitor

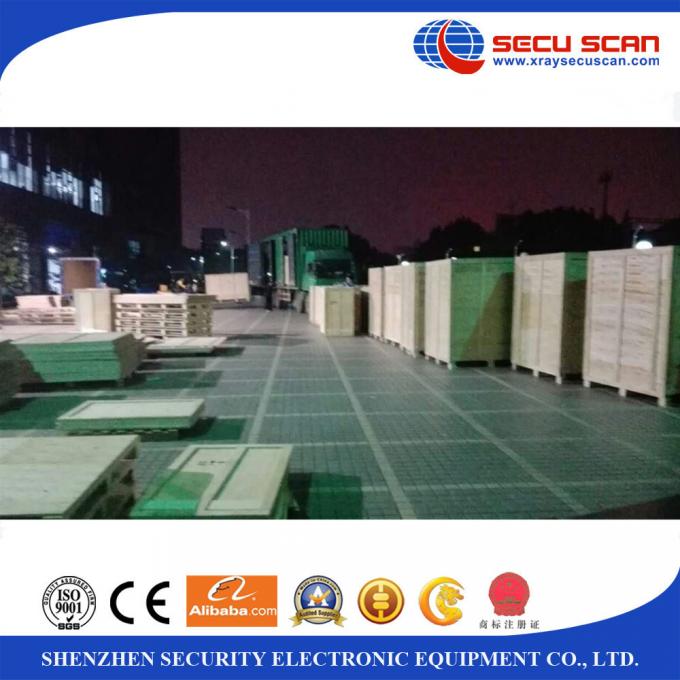

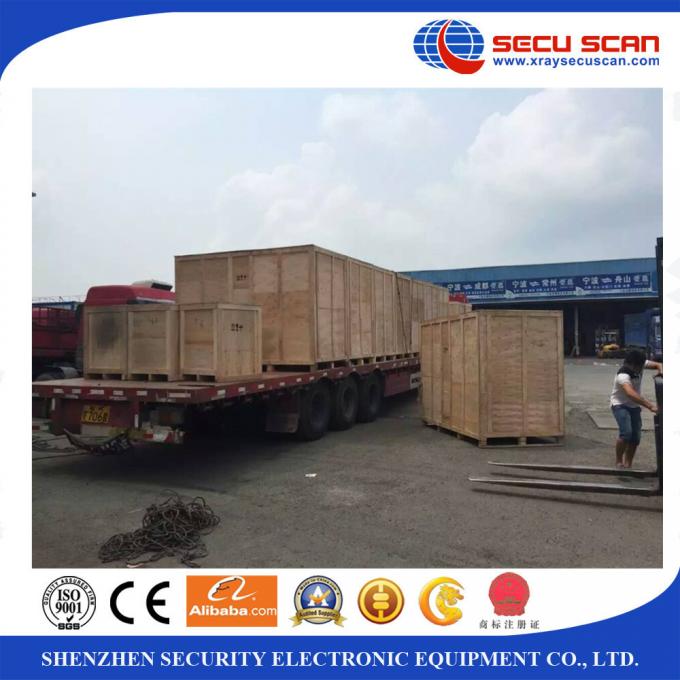

Shipping and Packing
